Beyond CLL Progression: Unveiling Th17 and Th2 T Cell Subsets As Predictors of Pembrolizumab Response in Richter's Transformation

Despite notable advancements in treating chronic lymphocytic leukemia (CLL) with targeted therapies, a significant clinical challenge arises as a subset of CLL patients progress and develop Richter's transformation (RT), an aggressive form of lymphoma. While immune cell dysfunction and T cell defects are well-known characteristics of CLL, the alterations in immune cell subsets during CLL progression to RT remain largely unexplored. While CLL patients typically fail to respond to anti-PD1 pembrolizumab, a positive response has been observed in 20-40% of RT patients. Previously, our study involving three RT patients (1 responder and 2 progressors) revealed enriched regulatory T cells (Tregs) in the responders compared to progressors after pembrolizumab treatment (Iyer et al, ASH2020). Hence, we propose that dynamic changes in T cell subsets at baseline may be associated with response to pembrolizumab treatment.

To this end, we performed single-cell RNA sequencing on sorted T cells (CD3 ⁺) from PBMCs derived from 20 patients (responders (RES), n=5; stable disease (SD), n=5; progressive disease/progressors (PD), n=10). A total of 408,627 cells were captured, and an average of 1,393 genes were detected per cell per patient. Using a graph-based clustering approach (Seurat V4.3), we identified 19 clusters based on marker genes and transcriptional signatures and identified enriched pathways using Enrichr analysis.

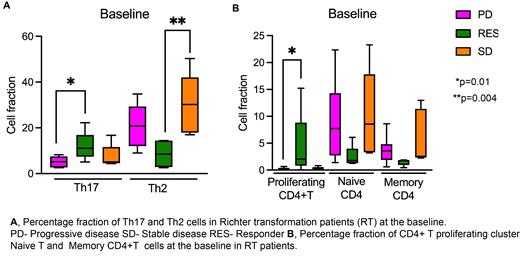

Our results showed that RES had an increased Th17 subset at baseline compared to PD (15% vs. 5%, p=0.01) and reduced Th2 T cells compared to SD (p=0.004) and PD (p=0.05). The Th17/Th2 ratio was higher in RES at baseline (Th17/Th2 R: 1.24, PD: 0.21, SD: 0.25, p0.05) and post-pembrolizumab (Th17/Th2 RES: 1.31, PD: 0.34, SD: 0.30, p0.05). Furthermore, RES had an increased fraction of proliferating CD4 T cells at baseline (4% RES vs. 0.4% SD and 0.4% PD, p=0.02) and post-treatment (1.9% RES vs. 0.8% PD and 0.34% SD, p=0.02).

Although we observed an increasing trend in the fraction of Tregs in the RES at baseline [(7.6% RES vs.6.1% PD and 6.5% SD, p=0.4; ns) and post-treatment (10.3% RES vs. 8.3% PD and 5.8% SD, p= 0.2; ns] compared to PD and SD, the difference was not significant. Similarly, among CD8+ T cells, we observed an increasing trend in CD8+ effector T cell fraction in the responders at baseline (29.8% RES vs. 21% PD and 15.6% SD, p=0.9, ns) and post-treatment (30.1% RES vs. 21.2% PD and 19.9% SD, p=0.44, ns). However, the difference was not statistically significant. These findings highlight the dynamic changes in T cell subsets associated with pembrolizumab response.

In terms of transcriptional changes in Tregs following pembrolizumab treatment among RES, PD, and SD, we observed dynamic changes on a few Treg marker genes, including TIGIT and TOX. TIGIT and TOX expression drastically decreased after treatment in RES (p < 0.0001), while expression did not change in PD and SD. There were no significant changes in the expression of FOXP3 or CD27 in RES, PD, and SD before and after the treatment. In CD8 effector T cells, GZMK, GZMA (granzymes), and PRF1 (perforin) are marker genes. We observed higher expression of GZMK and GZMA in RES (p <0.0001) at the baseline compared to SD and PD. In the proliferating CD4 T cells, we observed increased expression of IDH2 (Isocitrate dehydrogenase 2-key enzyme of TCA cycle) in RES at the baseline, as compared to PD and SD, indicating increased TCA cycle activity in the proliferating T cells. Pathway analysis of T cell clusters using the Enrichr database showed TNFA-IFNG-MYC targets are enriched in CD8 ⁺ cells, IL2-STAT5 signaling is upregulated in Th17, TREGs, and E2F cell cycle associated pathways enriched in CD4 ⁺ proliferation cluster.

In conclusion, our study unveils significant baseline differences in CD4 subsets between RES and PD/SD subjects and dynamic changes in T cell subsets and transcriptional signatures. These findings offer potential predictors of pembrolizumab response in RT, such as increased Th17/Th2 ratio, enriched proliferating CD4 ⁺ T cells, and elevated TIGIT, TOX gene expression in Tregs, GZMK, and GZMA in CD8 effector cells. This deeper understanding of the immunological landscape in RT patients sheds light on the interplay between T cell subsets and treatment response in RT, paving the way for personalized therapeutic strategies. Further validation and exploration can lead to improved outcomes and tailored interventions for RT.
